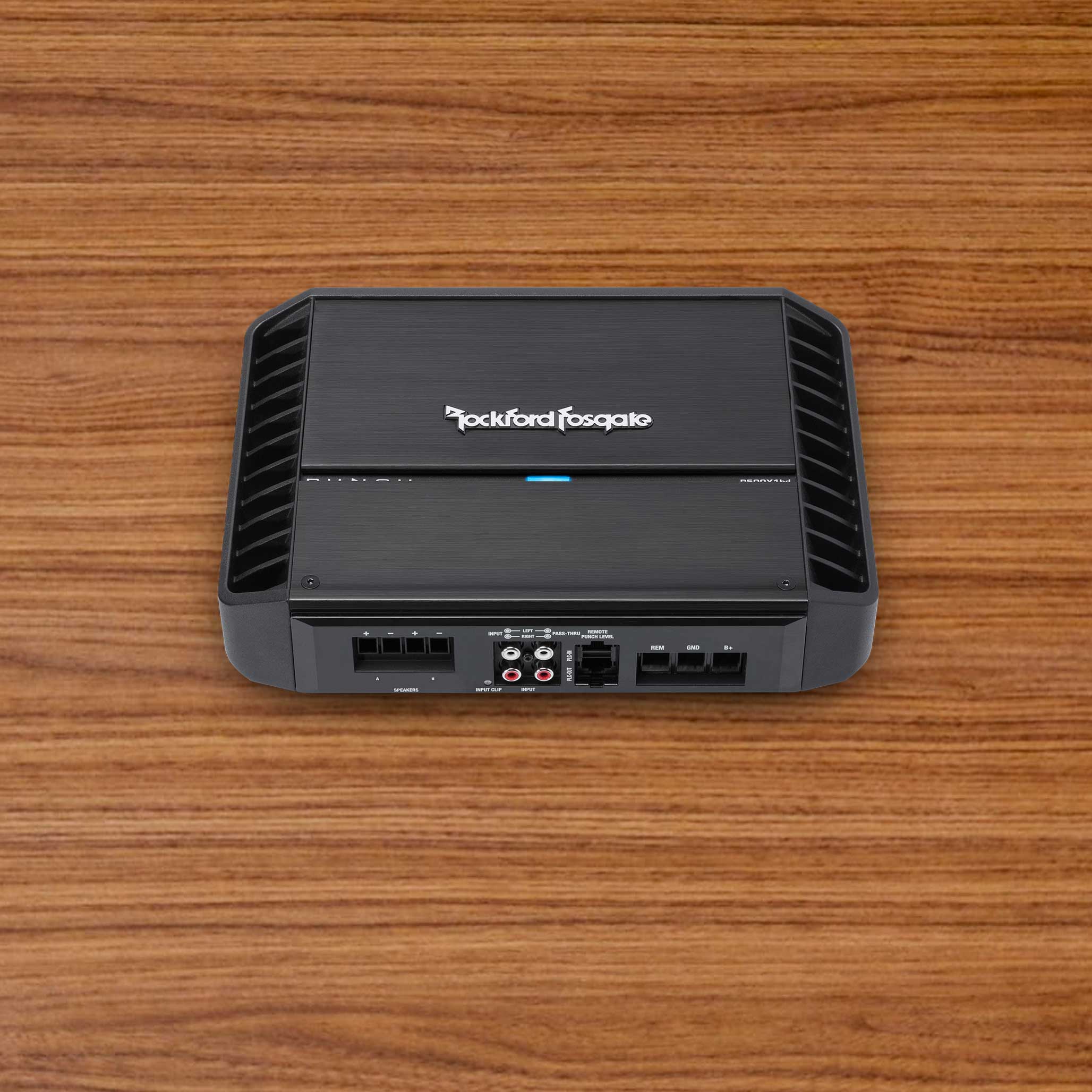

Rockfort Fosgate Punch 500 Watt Class-bd Mono Amplifier P500X1bd

387.53 CHF

Technical Specifications:

Number of Channels 1
Total Power(Sum of Rated Power) 500 Watts
Rated Power(RMS Continuous Power) 150 Watts x 1 @ 4-Ohm
300 Watts x 1 @ 2-Ohm
500 Watts x 1 @ 1-Ohm
Dynamic Power(PVC/PowerCube®) 224 Watts x 1 @ 4-Ohm
410 Watts x 1 @ 2-Ohm
787 Watts x 1 @ 1-Ohm
Bridgeable No
Frequency Response 20Hz to 250Hz +/- 1.0dB
Input Sensitivity 150 mV – 12 V
Circuit Topology Class Class BD
Efficiency (average) 86% @ 4-Ohm
Total Harmonic Distortion (THD+Noise) 4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0%
Signal Input Hi/Low level: 1 RCA pair
Signal Output Low level: 1 RCA pair
Tone Controls Punch EQ2 Bass: 0dB to +18dB @ 45Hz
Crossover Controls Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth
Infrasonic Filter (IF): 28Hz @ 12dB/Octave
All-Pass (AP): No
Remote Controls Optional Punch Level Control (PLC2) Ready
Visual Indicators Power/Protect/Thermal LED
Input Clip LED
3
Output Clip LED
1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge 4 AWG
Power Input Connector Captive C-Clamp
Speaker Wire Gauge 8 AWG to 18 AWG
Speaker Output Connector Captive C-Clamp
Cooling Convection
Operating Voltage 9 – 16 VDC
Recommended Fuse(not included) 80 A
Average Current Draw (13.8V Music) 35 A
Max. Current Draw (13.8V Sinewave) 70 A
Suggested Alternator 75 A
Dimensions (H x W x D) 2.38 x 7.76 x 11.03 (in)
6.05 x 19.71 x 28.02 (cm)
Shipping Weight 10.8 Lbs. (4.89 Kg.)
SKU: P500X1bd

Description

The Punch P500X1bd is a mono amplifier capable of 500 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response allows it to be optimized for subwoofers.

With its super efficient Class-bd circuit topology, the P500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.
