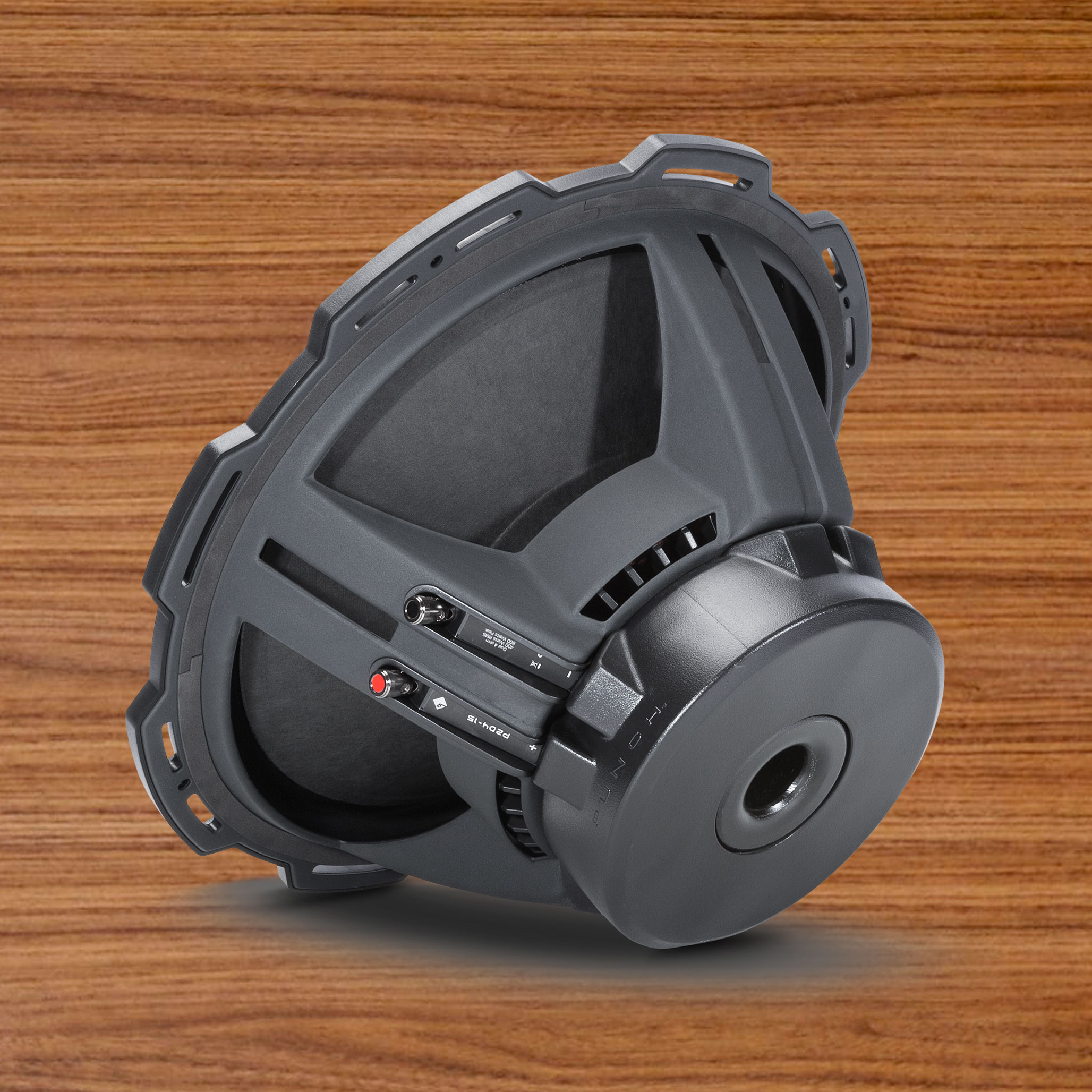

Rockfort Fosgate Punch 38 cm (15″) P2 4-Ohm DVC Subwoofer P2D4-15
241.84 CHF
Power Handling (Watts RMS) | 400 Watts RMS 800 Watts Max |
Voice Coil Diameter | 2.25″ (57.15 mm) |
Magnet Weight (oz) | 81 oz. (2.30 kg.) |
Nominal Impedance | Dual 4-Ohm |
Size | 38 cm (15″) |
Speaker Connector | Dual 10 AWG compression |
Shipping Weight | 17.9 Lbs. (8.11 kg) |
SPL (dB @ 1w/1m) | 86 |
Cutout Diameter | 13.9 in. (353 mm) |
Re (Ohms) | 6.40 |
Le (mH) | 5.4 |
Fs (Hz) | 20.9 |
Qts | 0.66 |
Qes | 0.74 |
Qms | 5.70 |
Vas (Liters) | 219.6 |
Woofer Displacement | 0.134 cu. ft. (3.8 Liters) |
Xmax (mm) | 12.2 |
Sd (cm2) | 894 |
Subwoofer Type | Standard |
Voice Coil Type | Dual Voice Coil |
Sealed Box Volume (Vb) | 1.58 cu. ft. (44.7 Liters) |
Vented Box Volume (Vb) | 2.66 cu. ft. (75.3 Liters) |
- Description
- Reviews (0)
Description
The Rockford Fosgate P2 15” subwoofer continues “The PUNCH” tradition. The P2D4-15 features a Dual 4-Ohm voice coil, 400 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring.
Rockford Fosgate has always been known as “The PUNCH” and the P2 15″ subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area up to 25%. The P2 subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available.
FEATURES AT A GLANCE
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Dual linear spider with embedded 16 AWG tinsel leads
- Extended pole piece and bumped vented backplate
- Protective PVC textured magnet cover
- Custom 10-AWG nickel plated push terminals
- StampCast basket with integrated spider venting
- Diamond cut cast aluminum trim ring with optional grille
- Kevlar fiber reinforced paper cone
