Rockfort Fosgate Punch 30 cm (12”) P3 2-Ohm DVC Subwoofer P3D2-12
319.54 CHF
Technical Specifications:
| Power Handling (Watts RMS) | 600 Watts RMS 1200 Watts Max |
| Speaker Connector | Dual 10 AWG compression |
| Magnet Weight (oz) | 96 oz. (2.73 kg.) |
| Size | 30 cm (12”) |
| Nominal Impedance | Dual 2-Ohm |
| Mounting Depth | 6.66 in. (169.3 mm) |
| Voice Coil Diameter | 2.5″ (65.5 mm) |
| Woofer Displacement | 0.106 cu. ft. (3.0 Liters) |
| Re (Ohms) | 3.20 |
| SPL (dB @ 1w/1m) | 85 |
| Fs (Hz) | 26.5 |
| Qts | 0.49 |
| Qes | 0.53 |
| Qms | 6.70 |
| Cutout Diameter | 11.25 in. (285 mm) |
| Le (mH) | 4.25 |
| Vas (Liters) | 57.7 |
| Xmax (mm) | 15.2 |
| Sd (cm2) | 570 |
| Subwoofer Type | Standard |
| Voice Coil Type | Dual Voice Coil |
| Sealed Box Volume (Vb) | 1.02 cu. ft. (28.8 Liters) |
| Vented Box Volume (Vb) | 1.79 cu. ft. (50.6 Liters) |
| Shipping Weight | 20.9 Lbs. (9.48 kg) |
- Description
- Reviews (0)
Description

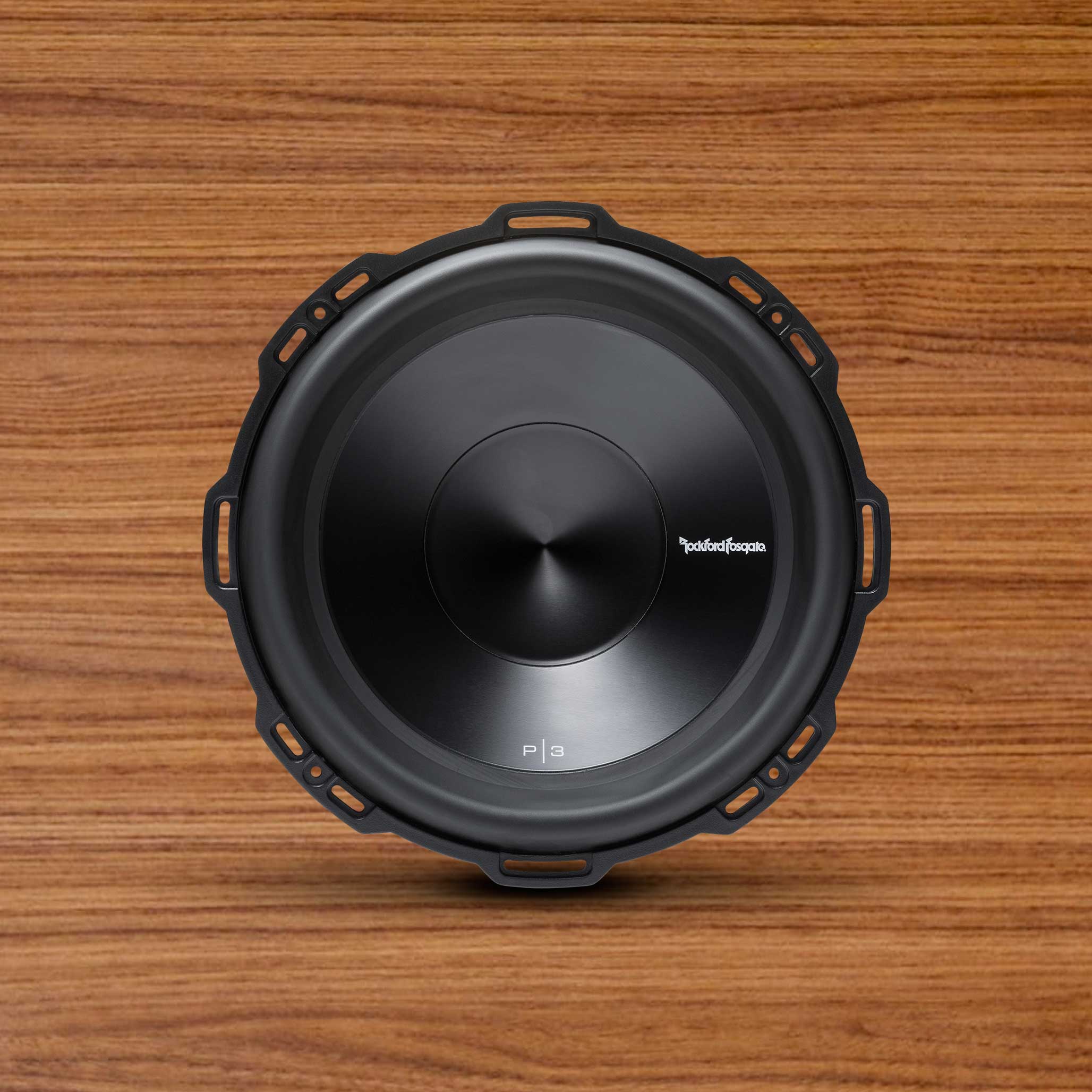

The P3D2-12 is the best performing Rockford Fosgate Punch series subwoofer. Built to max out your car audio system, the P3 12” features Dual 2-Ohm voice coils (DVC), 600 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring.
The P3D2-12 is Rockford Fosgate’s best performing Punch series subwoofer for cars and trucks. The P3 12 inch subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme car and truck installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.
