Rockfort Fosgate Prime 200 Watt 2-Channel Amplifier R2-200X2
222.42 CHF
Technical Specifications:
Number of Channels | 2 |
Total Power(Sum of Rated Power) | 200 Watts |
Rated Power(RMS Continuous Power) | 50 Watts x 2 @ 4Ω 100 Watts x 2 @ 2Ω 200 Watts x 1 @ 4Ω Bridged/Mono |
Dynamic Power(PVC/PowerCube®) | 60 Watts x 2 @ 4Ω 107 Watts x 2 @ 2Ω 215 Watts x 1 @ 4Ω Bridged/Mono |
Bridgeable | Yes |
Frequency Response | 20 Hz – 20 kHz |
Input Sensitivity | Low-Level: 150 mV – 4 V High-Level: 450 mV – 12 V |
Circuit Topology Class | Class-D |
Total Harmonic Distortion (THD+Noise) | 4Ω: <1.0% 2Ω: <1.0% |

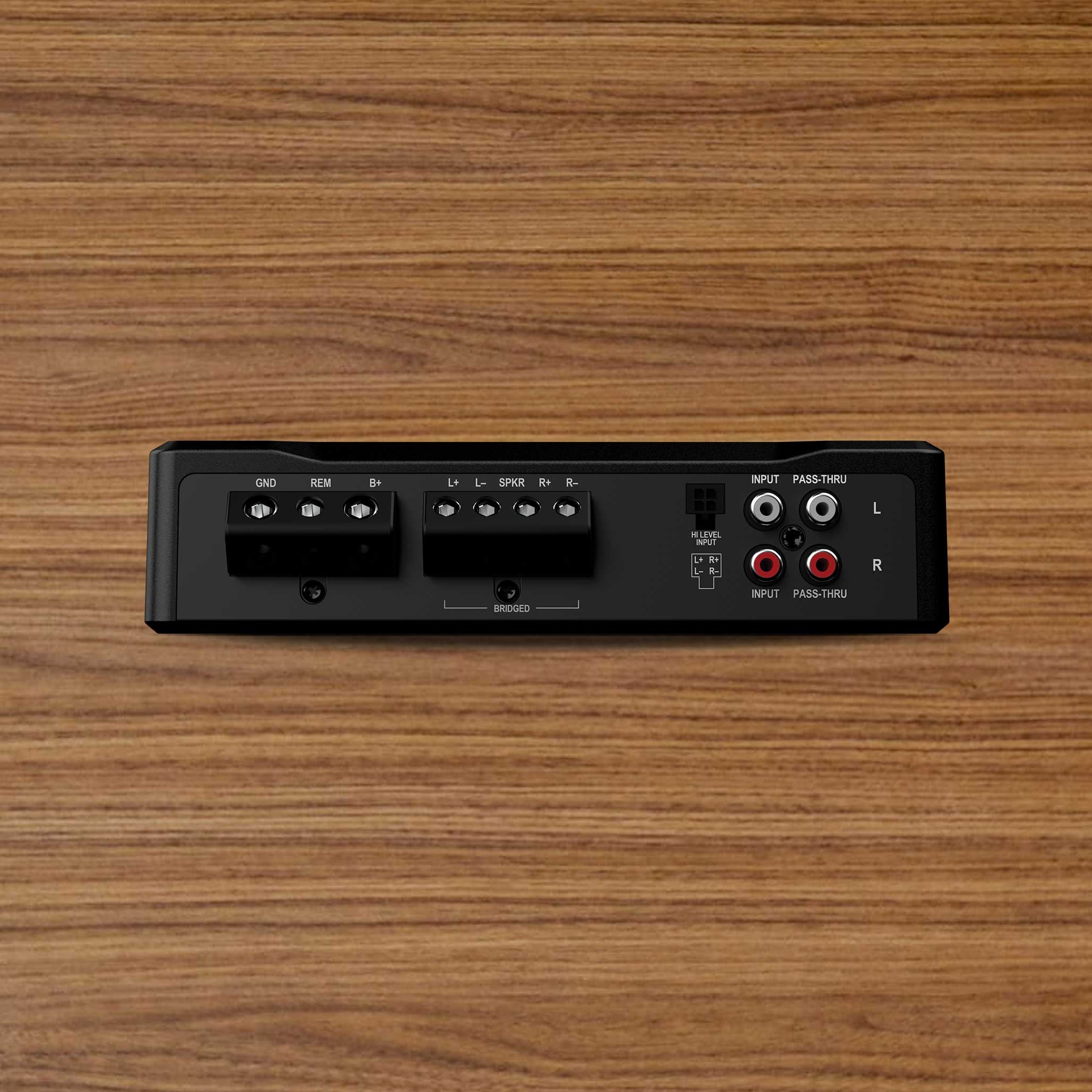

Signal Input | Low-Level: 2 RCA High-Level: 4-Pin Molex |
Signal Output | Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input) |
Tone Controls | No |
Crossover Controls | High-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth All-Pass: Yes |
Remote Controls | No |
Visual Indicators | POWER (Blue) / PROTECT (Red) C.L.E.A.N. IN (Red) C.L.E.A.N. OUT (Blue/Red) |
Power Wire Gauge | 4 AWG |
Power Input Connector | Compression Terminal Block |
Speaker Wire Gauge | 8 AWG |
Speaker Output Connector | Compression Terminal Block |
Cooling | Convection |
Operating Voltage | 9 – 16 VDC |
Recommended Fuse(not included) | 30 A |
Max. Current Draw (13.8V Sinewave) | 18 A |
Dimensions (H x W x D) | 1.9″ x 6.8″ x 8.1″ (4.9 cm x 17.3 cm x 20.5 cm) |
- Description
- Reviews (0)
Description
Primed for Performance, the R2-200X2 is a 200 watt, full-range Class-D amplifier capable of operating at 4Ω or 2Ω stereo and 4Ω bridged/mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. supply that generates more power as voltage increases.
The R2 models are developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.
