Rockfort Fosgate Power 500 Watt Class-BR Mono Amplifier T500x1br
436.09 CHF
Technical Specifications:
Number of Channels | 1 |
Total Power(Sum of Rated Power) | 500 Watts |
Rated Power(RMS Continuous Power) | 175 Watts x 1 @ 4-Ohm 300 Watts x 1 @ 2-Ohm 500 Watts x 1 @ 1-Ohm |
Dynamic Power(PVC/PowerCube®) | 201 Watts x 1 @ 4-Ohm 342 Watts x 1 @ 2-Ohm 540 Watts x 1 @ 1-Ohm |
Bridgeable | No |
Frequency Response | 20Hz – 220Hz +/-1dB |
Input Sensitivity | 150 mV to 12 V |
Circuit Topology Class | Class BR |
Efficiency (average) | >75% |
Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% 1-Ohm: <1.0% above 35 Hz |
Signal Input | High/Low Level Input: 4-Pin harness |
Signal Output | – |
Tone Controls | Bass: 0 to +18 dB @ 45 Hz |
Crossover Controls | Low-Pass: 50Hz – 250Hz @ 12dB/Octave Butterworth All-Pass: No |
Remote Controls | Optional PLC2 provides Punch Level Control |
Visual Indicators | Power: Blue LED Protect: Red LED Input Clip: Red LED3 Output Clip: Blue/Violet/Red LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD |
Power Wire Gauge | 8 AWG |
Power Input Connector | Detachable Compression Terminal |
Speaker Wire Gauge | 10 AWG |
Speaker Output Connector | Detachable Compression Terminal |
Cooling | Dual Fan Cooled |
Heatsink | Extruded Aluminum |
Operating Voltage | 9 – 16 VDC |
Recommended Fuse(not included) | 60 A |
Average Current Draw (13.8V Music) | 30 A |
Max. Current Draw (13.8V Sinewave) | 60 A |
Suggested Alternator | 75 A |
Dimensions (H x W x D) | 1.6 x 4.3 x 8.3 (in.) 4.1 x 10.8 x 21.1 (cm) |
Shipping Weight | 3.1 Lbs. (1.4 Kg.) |
- Description
- Reviews (0)
Description
The Power T500X1br is an ultra-compact, patented Boosted Rail 500 Watt mono amplifier. Features high-level auto turn-on, input/output clip detection, top mounted controls and dual fan forced induction cooling. Perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.

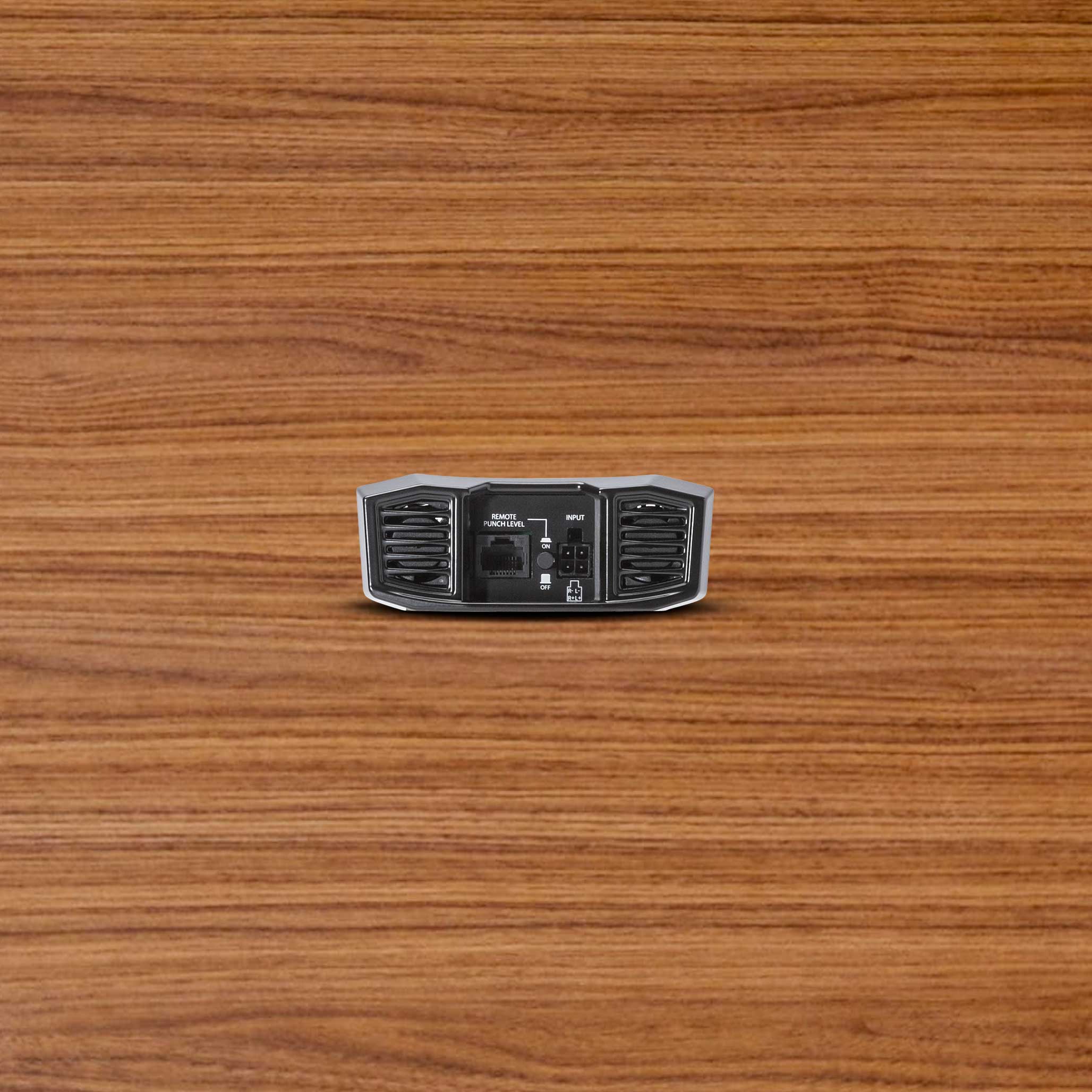

The Power T500X1br 500 Watt mono ultra-compact amplifier is built on Rockford Fosgate’s patented Boosted Rail technology that sips current while retaining a storage reserve for extended bursts of power. Flexible vehicle integration enabled through low-level and high-level inputs with auto turn-on. Top mounted controls allow easy access to built-in crossover and C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while real-time thermal/protection schemes safeguard the amplifier.
