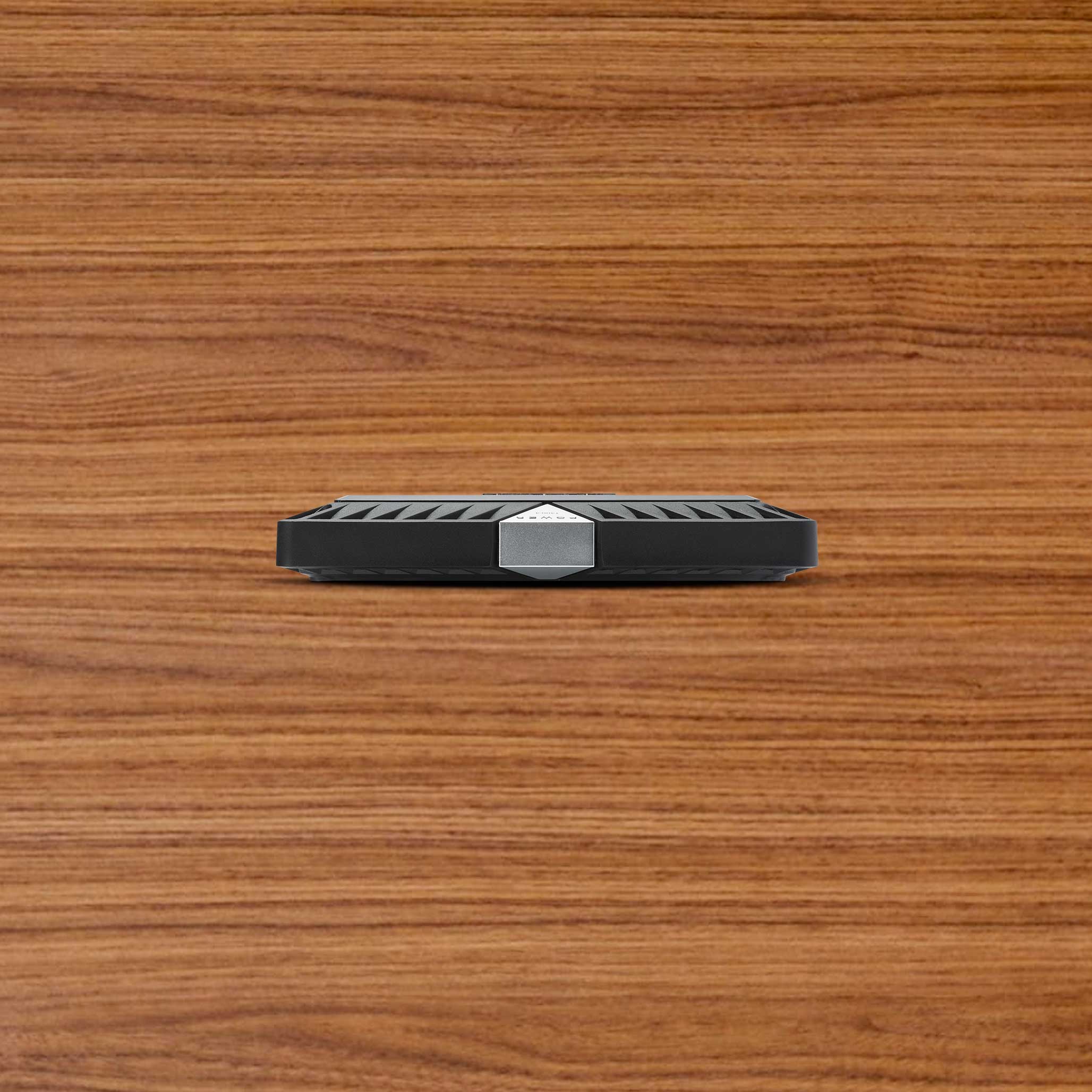

T400-4 Rockfort Fosgate Power 400 Watt 4-Channel Amplifier
465 CHF
Technical Specifications:
| Number of Channels | 4 |
| Total Power(Sum of Rated Power) | 400 Watts RMS |
| Rated Power(RMS Continuous Power) | 60 Watts x 4 @ 4-Ohm 100 Watts x 4 @ 2-Ohm 200 Watts x 2 @ 4-Ohm Bridged 2-Ohm x 2 Bridged Stable |
| Dynamic Power(PVC/PowerCube®) | 84 Watts x 4 @ 4-Ohm 0° Res 139 Watts x 4 @ 2-Ohm 0° Res 272 Watts x 2 @ 4-Ohm Bridged |
| Bridgeable | Yes |
| Frequency Response | 20Hz to 20kHz +/- 1dB |
| Input Sensitivity | 150 mV to 4 V |
| Circuit Topology Class | Class A/B |
| Efficiency (average) | 69% @ 4-Ohm 68% @ 2-Ohm |
| Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% |
| Signal Input | Front Low level: 1 RCA pair Rear Low level: 1 RCA pair Input Switch: 2CH / 4CH |
| Signal Output | n/a |
| Tone Controls | Front Channels – Punch EQ Treble: 0dB to +12dB @ 12kHz Bass: 0dB to +18dB @ 45Hz Rear Channels – Punch EQ Treble: 0dB to +12dB @ 12kHz Bass: 0dB to +18dB @ 45Hz |
| Crossover Controls | Front High-Pass (HP): 50-500Hz 24dB/octave Butterworth Front Low-Pass (LP): 50-500Hz 24dB/octave Butterworth Rear High-Pass (HP): 50-500Hz 24dB/octave Butterworth Rear Low-Pass (LP): 50-500Hz 24dB/octave Butterworth |
| Remote Controls | Optional Remote Punch EQ |
| Visual Indicators | Power Thermal Protect |
| Power Wire Gauge | 8 AWG to 4 AWG |
| Power Input Connector | Block |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Speaker Output Connector | Screw terminal barrier strip |
| Cooling | Convection |
| Operating Voltage | 9 – 16 VDC |
| Recommended Fuse(not included) | 60 A |
| Average Current Draw (13.8V Music) | 30 A |
| Max. Current Draw (13.8V Sinewave) | 60 A |
| Suggested Alternator | 75 A |
| Dimensions (H x W x D) | 2.14 x 8.14 x 13.66 (in) 5.42 x 20.68 x 34.69 (cm) |
| Shipping Weight | 11.90 Lbs. (5.39 Kg.) |
- Description
- Reviews (0)
Description
The Power T400-4 is a 4-channel amplifier capable of producing 100 Watts into each of its four channels at 2-Ohms. The T400-4 can run a 4-way full-range system or use component speakers on the front with subwoofers on the rear.
The T400-4 amplifier is perfect for front/rear fading stereo systems or when dedicated amplification is required between front stage speakers and rear subwoofer(s). Thanks to the Dynamic Thermal Management, the small chassis design insures it can be installed in any location – like under front seats.
