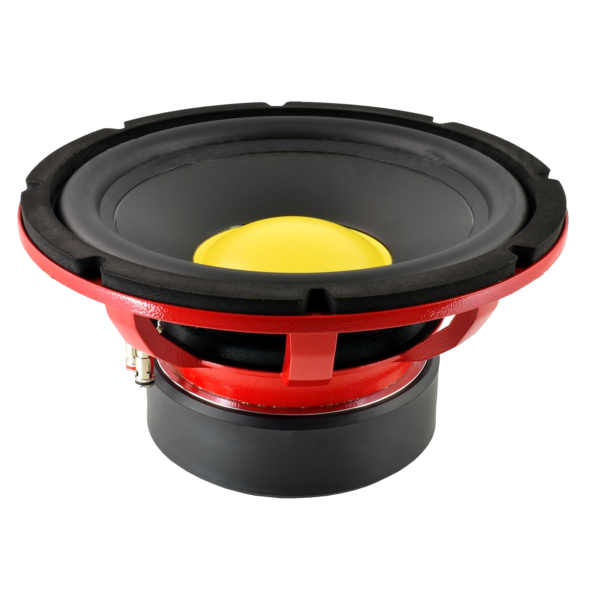

PHD Italy – STUDIO 12.1 (320mm) Subwoofer 250 W RMS

165.00 CHF

320mm (12″) subwoofer
4 Ω voice coil
power rating 250 W RMS
voice coil diameter 2″
voice coil frame material aluminum
cast aluminum frame
compressed paper cone treated on both sides
HNBR rubber suspension
linear lower suspension
wires braided into the lower casing
installation hole diameter: 284 mm
element outer flange diameter: 320 mm
installation depth: 155 mm
magnet diameter: 184 mm
the largest recommended closed case: 30 liters net ( Q = 0.634 )
recommended closed case: 22 liters net ( Q = 0.707 )
recommended reflex housing: 41 liters ( net ), tuning frequency 33 Hz ( full length 4″ Aeroport )
smallest recommended reflex box: 33 liters ( net ) tuning frequency 35 Hz ( full length 4″ Aeroport )

Description

Unique solutions with a no compromise sound quality. This could be the definition that describes better than any other the Studio Line, which represents the latest applications of new technologies, materials and engineering in the audio industry.
This is not only the ultimate expression of PHD Audiophile Sound Systems, but also a benchmark for the competitors.
