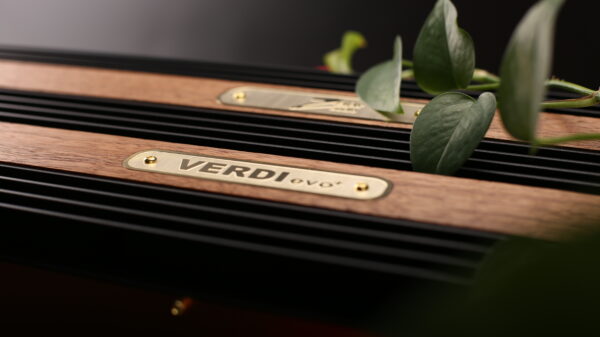

Abyss VERDI evo+ 2 channel amplifier
10,000.00 CHF
Specifications:
Output power rating: 320W x 2 CH
4 ohm at 14.4V(1% THD+N): 320W x 2 CH
2 ohm at 14.4V(1% THD+N): 500W x 2 CH
Mono bridge at 4 ohms (1% THD+N): 1000W x 1 CH
Operating voltage (RMS MAX OUTPUT): 9-16V
Power supply: PWM
Output power circuit configuration: MOSFET ClASS-AB
Main PCB Material: FR-4 D / 1 Oz
Miscellaneous Specification:
Soft start sound: YES
Frequency response @-1dB (4ohm 10watt): 20Hz – 20kHz
Damping factor (4ohm/1%): >500
S/N Ration (A-Weight /RMS Power): >92 dB
THD (A-Weight) 10watt: 0.050%
Channel separation: >60dB
Variable Input gain control(1% THD+N): 0.4V~10V
Input Impedance: 20k ohm
LED(s): Power/Protect
Protection(Short, Thermal, DC Offset): YES
Residual noise (A-Weight): 0.5mV below
Dimensions: 216x69x553
Weight: 7.5kg
- Description
- Reviews (0)
Description
New to the Abyss line up, the Abyss MFA5 evo+ series is a product of current day demand: A cost effective audiophile grade amplifier housed a more conservative footprint. (With a nice versatile on-board crossover network)
Easier to install and still retaining its Sound Quality, the MFA5 evo+ is ideal for the daily Audiophile who wants to start venturing to the dark side.
